Mini Vortex Mixer

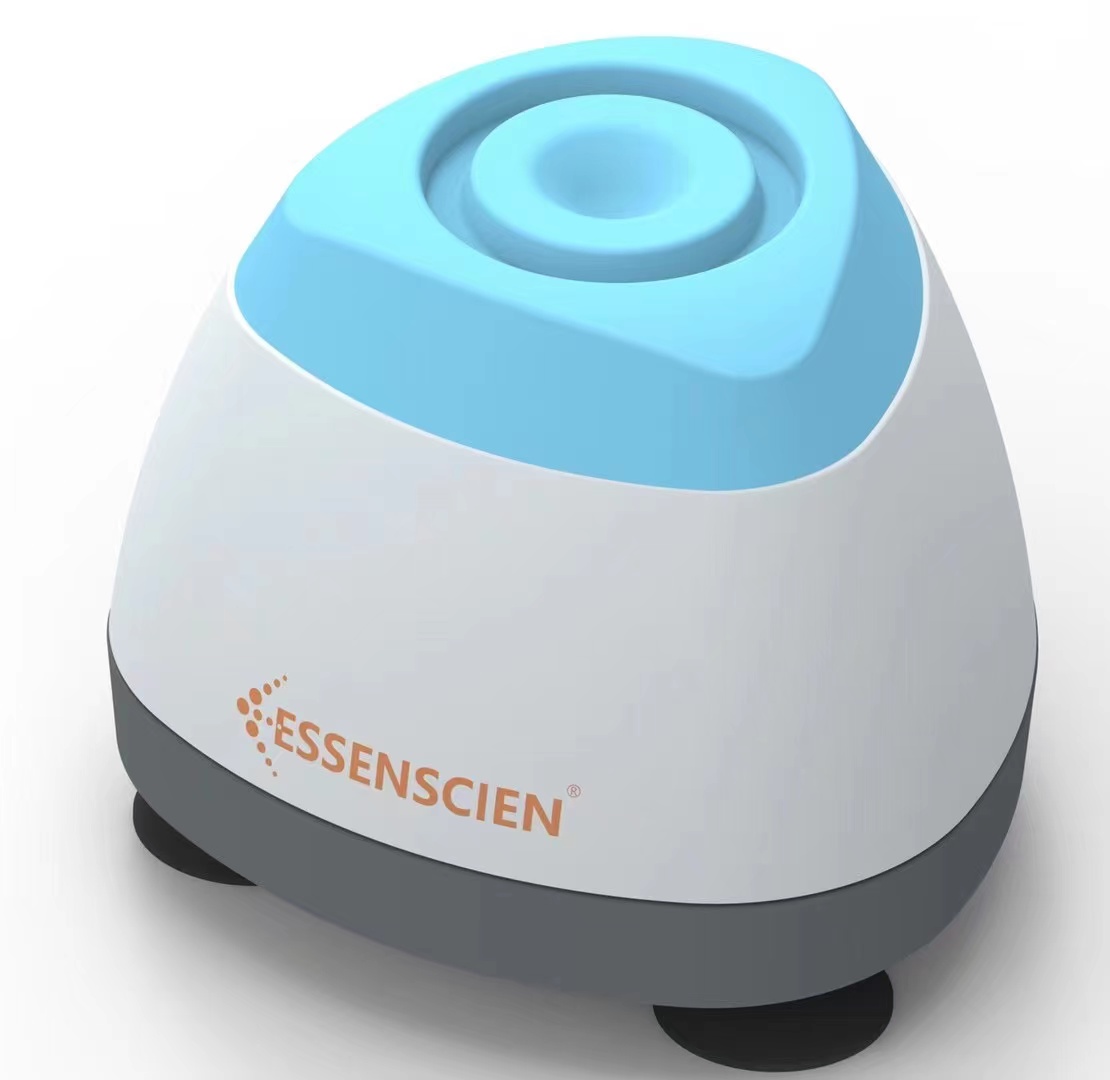

V1 Mini Vortex Mixer

This product is a high-speed mini vortex mixer designed for the rapid mixing of various reagents, solutions, and chemical substances. It is suitable for fixed, oscillating, and mixing processes in test tubes and centrifuge tubes.



  • Momentary operation mode
  • Fixed speed: 3000rpm
  • Exquisite and compact appearance, convenient for carrying
  • Utilizes a brushless DC motor for reliable and stable performance
  • Low center of gravity with vacuum suction cup feet, preventing movement during operation
  • Excellent sealing performance, resistant to chemical corrosion, easy to clean and maintain
  • High speed with large oscillation amplitude, facilitating vortex formation for significant mixing effects
  • Silicone cap with rotation groove design reduces vibration and minimizes noise
  • It can oscillate test tubes or containers with a diameter of up to 30mm, suitable for shaking test tubes or centrifuge tubes



Standard Configuration

Serial Number

Name and Specification

Quantity

1

Main Unit

1

2

Power Adapter

1



Technical Specifications

Model

V1

Motion Mode

Approximate Circular Motion

Circumference Diameter

4.5mm

Speed

3000rpm (Fixed Speed)

Operation Mode

Momentary

Available Accessory

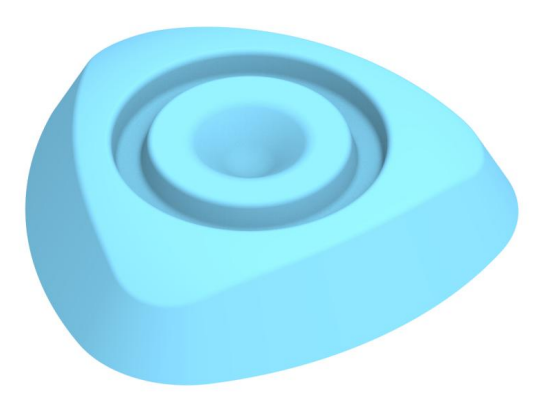

Silicone Cap

Maximum Load Capacity

0.1kg

Operating Temperature

5 - 40 ℃

Operating Humidity (Relative)

80%

Protection Level

IP42 (Achievable only with fixture installation)

Input Power

DC12V 1.5A

Output Power

7.5W

Dimensions (W×D×H)

97×97×81mm

Weight

0.8kg



Accessory Selection

Code

Illustration

Description

V1-001

For test tubes and small containers with a diameter less than 30mm
