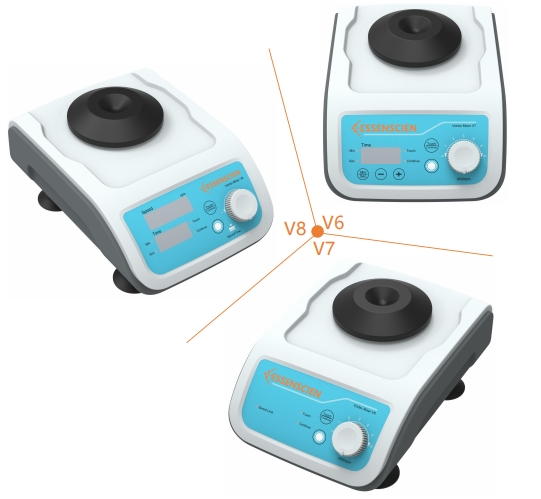

Flagship Series Vortex Mixer
Flagship Series Vortex Mixer
This series of products is the flagship version of vortex mixers, capable of fixing, oscillating, and mixing chemicals, primarily used in medical, bioengineering, chemical, pharmaceutical, and other research fields. It is suitable for oscillating and mixing test tubes, centrifuge tubes, and enzyme plates.
Product Features
- Flagship series vortex mixer, suitable for momentary or long-term continuous operation.
- Adjustable speed, with a maximum speed of 3000rpm.
- Both timed and non-timed operation modes are available, with one-touch quick switching, eliminating the need for tedious time value adjustments.
- Operates at a low voltage of 24V to ensure experiment safety.
- Utilizes a brushless DC motor for reliable and stable performance.
- Powerful motor with rapid acceleration.
- High speed and large oscillation amplitude, facilitating vortex formation in liquids and significantly enhancing mixing effects.
- Low body height and center of gravity, equipped with vacuum suction feet for enhanced stability during operation.
- Perfect dynamic balance design ensures no movement during operation.
- Easy interchangeability of fixtures and test tube adapters to meet various application needs.
- Multiple fixture and test tube adapter options available.
- All fixtures are automatically recognized, with automatic speed limitation for safety and reliability, making operation simple and convenient.
- Guided rail-type operation structure design ensures standard circular oscillation without lateral shaking, guaranteeing consistency in oscillation for all sample positions.
Standard Configuration
Serial Number | Name and Specification | Quantity |
1 | V8 or V7 or V6 Main Unit | 1 |
2 | Power Adapter | 1 |
3 | Momentary Fixture, Flask Fixture, Flask Circular Pad | 1 each |
4 | Enzyme Plate Fixture, 96-Well Plate Tube Adapter | 1 each |

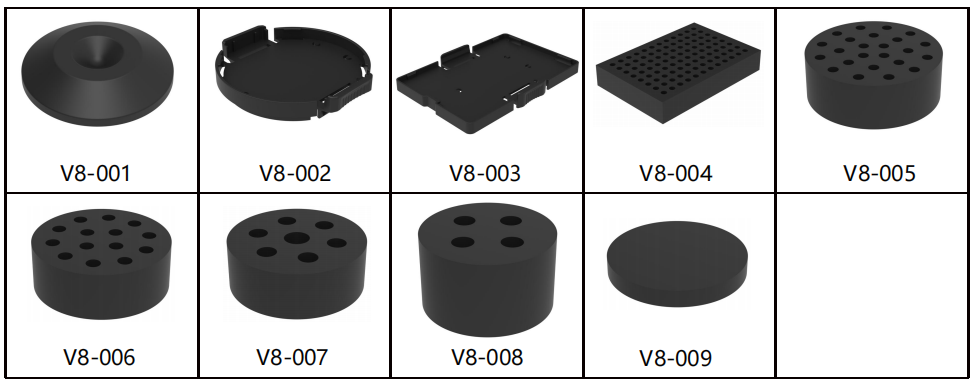

Accessory Selection
Accessory Code | Description | Speed Range |
V8-001 | Momentary fixture, for tubes and small containers with a diameter less than 30mm. Maximum speed: 3000rpm | Up to 3000rpm |
V8-002 | Flask fixture | Up to 1300rpm |
V8-003 | Enzyme plate fixture | |
V8-004 | Tube adapter, used with V8-003, suitable for 0.2ml PCR tubes, PCR rows, and 96-well PCR plates, hole diameter Φ5.0mm×96. | |
V8-005 | Tube adapter, used with V8-002, for 0.5ml tubes, hole diameter Φ6.6mm×24. | |
V8-006 | Tube adapter, used with V8-002, for 1.5/2.0ml tubes, hole diameter Φ8.8mm×14. | |
V8-007 | Tube adapter, used with V8-002, for 5.0ml tubes, hole diameter Φ12mm×6. | |
V8-008 | Tube adapter, used with V8-002, for 10/15ml tubes, hole diameter Φ14mm×4. | |
V8-009 | Flask circular pad, used with V8-002, for tubes or small containers with a diameter less than 65mm. Maximum speed: 3000rpm | Up to 3000rpm |
Technical Specifications
Parameter | V6 | V7 | V8 |
Movement Type | Guide rail circular motion | ||
Speed Control Type | Stepless speed control | Encoder speed control | Encoder speed control |
Turntable Diameter | 4.5mm | ||
Speed Range | 0-3000rpm | ||
Timing Range | None | 1-999s or 1-999min | 1-999s or 1-999min |
Speed Display | Gradation display | Gradation display | LED digital display |
Time Display | None | LED digital display | LED digital display |
Operating Mode | Momentary/Continuous | ||
Compatible Accessories | All | ||
Maximum Load Weight | 0.5kg | ||
Operating Temperature | 5 - 40 ℃ | ||
Ambient Humidity | 80% | ||
Protection Level | IP21 | ||
Input Power | DC24V 1.0A | ||
Output Power | 15W | ||
Dimensions | 147×197×107mm | ||
Weight | 2.6kg | ||
