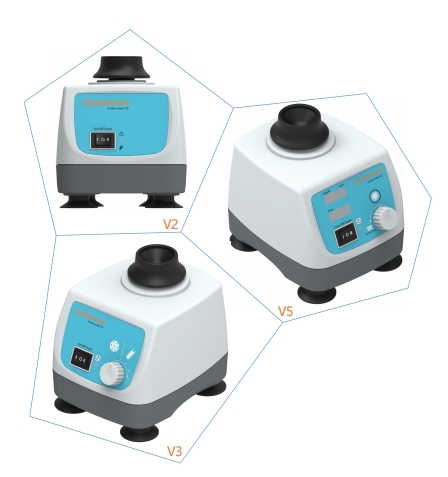

Classic Series Vortex Mixer

Classic Series Vortex Mixer

The Classic Series vortex mixer is designed for fixed, oscillating, and mixing processes of chemical substances. It is primarily used in research fields such as medicine, bioengineering, chemistry, and pharmaceuticals.



Product Features

  • Classic series vortex mixer, suitable for momentary or continuous operation.
  • Operates at 12V low voltage for experiment safety.
  • Utilizes a brushless DC motor for reliable and stable performance.
  • Powerful motor with fast acceleration.
  • Offers both timed and non-timed operation modes, with easy one-touch switching without the need for complicated time setting adjustments.
  • No-contact electromagnetic induction triggering for quiet operation with minimal wear.
  • High speed with large oscillation amplitude, facilitating significant mixing effects with vortex formation.
  • Low body and center of gravity, equipped with vacuum suction cup feet for exceptional stability during operation.
  • Perfect dynamic balance design ensures the instrument remains stationary during operation.
  • Easily interchangeable fixtures and test tube adapters to meet various application needs.
  • Various fixtures and test tube adapters are available for selection.
  • Can oscillate test tubes or containers with a diameter of up to 30mm.
  • This instrument is suitable for mixing liquid media: momentary mode for oscillating a single test tube, continuous mode for oscillating one or multiple test tubes.



Standard Configuration

Serial Number

Name and Specification

Quantity

1

V5/V3/V2 Main Unit

1

2

Power Adapter

1

3

Standard Head Fixture (V5-001)

1





Accessory Selection

Accessory Code

Description

Speed Range

V5-001

Standard head, for test tubes and small containers with a diameter of less than 30mm

Up to 3000rpm

V5-002

Circular tray

Up to 1300rpm

V5-003

Test tube clamp tray connector, used with V5-009, V5-010

V5-004

Test tube adapter, for 0.1/0.2ml test tubes (Φ5.0mm hole, 48 holes)

V5-005

Test tube adapter, for 0.5ml test tubes (Φ6.6mm hole, 36 holes)

V5-006

Test tube adapter, for 1.5/2.0ml test tubes (Φ8.8mm hole, 16 holes)

V5-007

Test tube adapter, for 5.0ml test tubes (Φ11.8mm hole, 8 holes)

V5-008

Circular pad, for test tubes or small containers with a diameter less than 83mm

V5-009

Test tube clamp tray, for 4x10/15ml test tubes

V5-010

Test tube clamp tray, for 2x50ml test tubes
