Mini Centrifuge

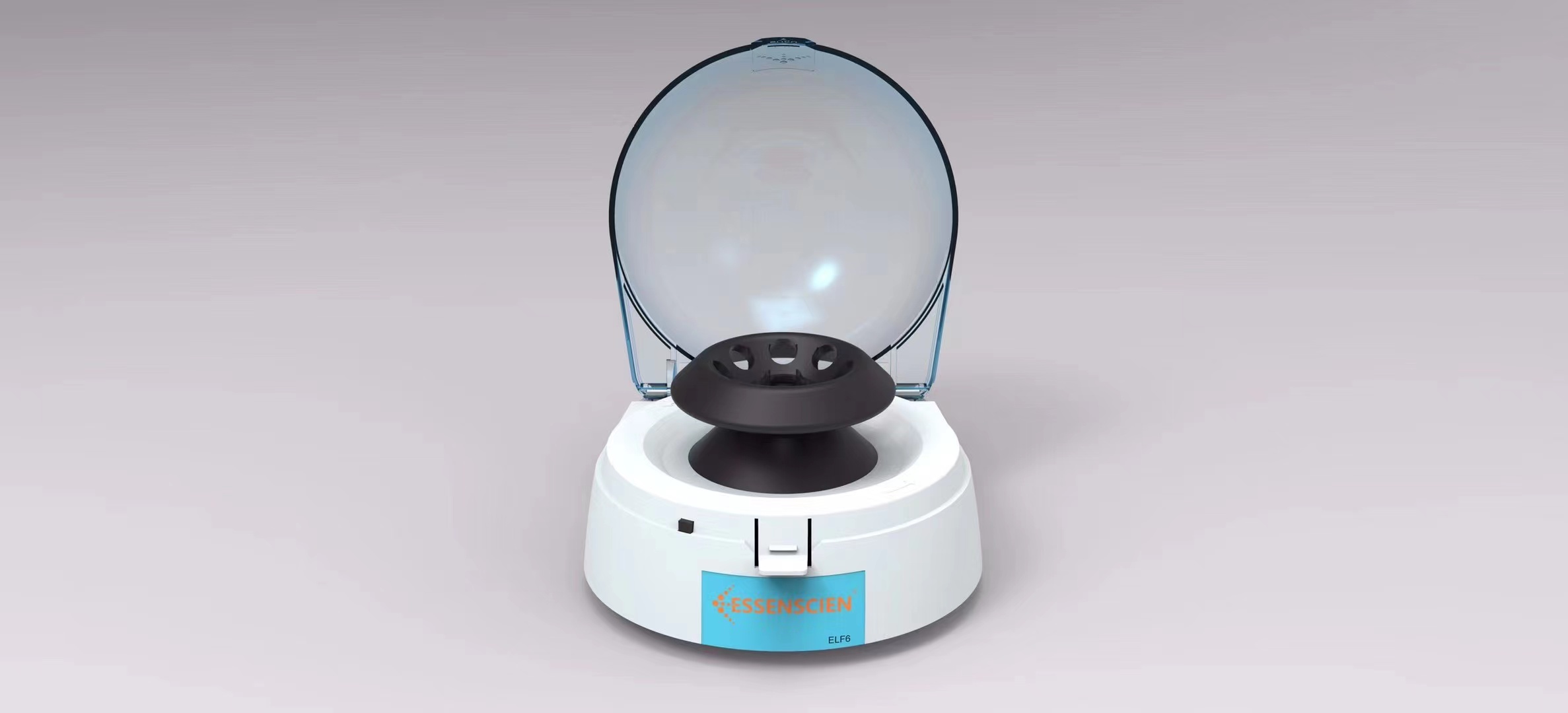

ELF6 Mini Centrifuge

The ELF6 mini centrifuge is ideal for microtube filtering and rapid centrifugation, and it can also address the phenomenon of liquid clinging to the walls of centrifuge tubes.

Product Features

  • Flip cover switch function, starts when closed and stops when opened, convenient operation.
  • Carefully designed shock absorption mechanism, minimal vibration during operation.
  • Cleverly designed buckle structure for quick and easy rotor replacement or disassembly.
  • Compact body size with large sample capacity, capable of accommodating filter-type centrifuge tubes.
  • Rapid acceleration, reaching maximum speed in 6~7 seconds.
  • Stable and quiet operation, noise level ≤48dB.
  • Safe operation with 24V low-voltage operation to ensure experiment safety.
  • High safety coefficient: equipped with two touch switches internally, the instrument only runs when both are closed simultaneously, avoiding safety hazards caused by improper operation.



Standard Configuration

Number

Name and Specification

Quantity

1

Main Unit

1

2

Power Adapter

1

3

Circular Rotor, Square Rotor

1 each

4

0.2ml, 0.5ml Tube Adapters

8 each



Technical Specifications

Model

ELF6

Maximum Speed

6200rpm (±5%)

Maximum Relative Centrifugal Force

2370×g

Rotor Capacity

(Circular Rotor)0.2/0.5/1.5/2.0mL×8;
(Square Rotor)0.2mL×16 tubes or 0.2mL 8-strip tubes × 2 rows;

Operating Time

Continuous

Compatible Accessories

All

Motor Type

DC motor

Acceleration Time

Reach maximum speed in 6~7 seconds

Deceleration Time

Within 15 seconds if not lidded, within 3 seconds if lidded.

Input Power

DC24V 2.0A

Output Power

20W

Dimensions

(W×D×H)157×170×120mm

Weight

0.6kg

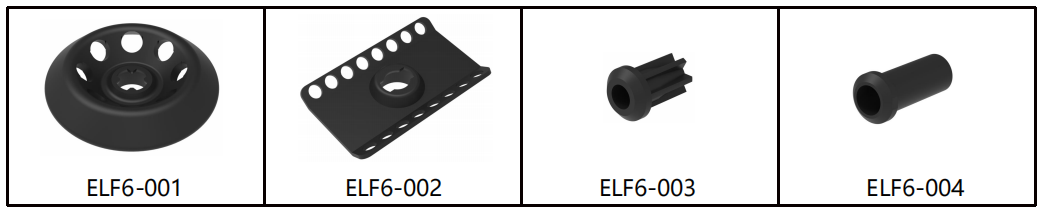

Accessory Selection

Accessory Code

Description

ELF6-001

Circular Rotor

ELF6-002

Square Rotor

ELF6-003

0.2mL Tube Adapter, for use with ELF6-001 (8 pieces/pack)

ELF6-004

0.5mL Tube Adapter, for use with ELF6-001 (8 pieces/pack)
